6V Micro 13mm Coreless Dc Motor 10000rpm For Tattoo Pen

Name: 6V Micro 13mm Coreless Dc Motor 10000rpm For Tattoo Pen
Brand: SECORE
Price: 1 USD

Buy cheap 6V Micro 13mm Coreless Dc Motor 10000rpm For Tattoo Pen product

Brand Name : SECORE

Model Number : SC-CL1320

Certification : CE ROHS

Place of Origin : China

MOQ : 500

Price : Negotiated The Price

Payment Terms : T/T, D/A

Supply Ability : 100000pcs per month

Delivery Time : 7-10 working days

Packaging Details : 50pcs per carton or as request

Rated Voltage : 6 volt

Rated Power : 2.1W

Rated torque : 1.05mN.m

Rated Speed : 10300 rpm

Rated current : 0.264A

Diameter*Length : 13mm * 20mm

product type : Coreless motor, Brush dc coreless motor

Usage : dental equipment, tattoo pen, electric lock

Contact Now

6V Micro 13mm Coreless Brush Dc Motor 10000rpm For Tattoo Pen

Key Specifications :

Motor model no.		CL1320-01	CL1320-02	CL1320-03	CL1320-04
Terminal resistance	Ω	2.86	3.69	21	72.75
Terminal inductance	mH	0.058	0.13	0.51	1.843
torque constant	mN.m/A	36.63	4.67	8.59	18.53
Speed constant	rpm/V	2568	2001	1084	501
speed/torque constant	rpm/mNm	2075.2	1620.3	2594.4	2024.86
mechanical time constant	ms	5.2	4.3	5.7	4.64
reotor inertia	gcm²	0.25	0.25	0.21	0.22
number of pole pairs		1
number of phase		5
Noise level	dB	≤38
weight	g	13

Product name: Brush Coreless motor

Product type: DC Brush motor, DC brushless motor,

Diameter size: 10mm -60mm

work voltage: 3V-48V

Free load speed: 2000-1000000rpm,

power: 2w-800w

Optional to equipp with gearbox, encoder, brake

This product is customized type, tailor-made as per customers' requirement

Conventional color is silver and black, other color is customizable

Dimension

6V Micro 13mm Coreless Dc Motor 10000rpm For Tattoo Pen

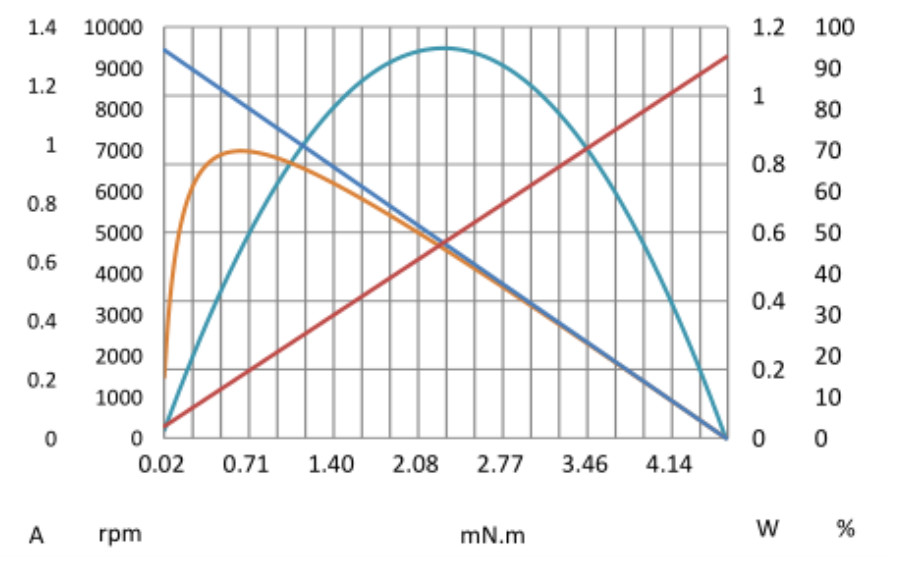

Performance curve:

6V Micro 13mm Coreless Dc Motor 10000rpm For Tattoo Pen
